Optec provides 3 well-rounded types of value added cable management solutions to maximize performance and protection of network cabling system. These enclosures respectively correspond to support direct splicing and patching cable management, as well as managing and housing easy plug MTP/MPO to LC fiber cassette modules.

With delivering modular Drawer Type and traditional fixed type panel, Optec can satisfy different users’ preferences in SAN, LAN and Data Center applications. The pre-installed patch panel solution helps save your on-site installation time and cost in a highly efficient manner.

Options of Drawer Type and Fixed Type design

- Satisfies different users' applications in cable management

Available for 1U, 2U, 4U in EIA 19” rackmount

- High Flexibility for various usages

Re-lockable front plate with hinges and ease of removal top plate

- Provides extra access to fibers and ease of maintenance

Modular pull-push drawer (Drawer Type)

- Can be removed completely from the panel body for ease of cable management

Inter-changeable drawers (Drawer Type)

- Supports easy reconfiguration for moves, adds and changes

High density for MTP/MPO to LC fiber cassette modules

- Up to 384-fiber for 4U

Patch Panel for Splicing

Example:

Ordering Code: RMP-SPL-1U-D1-024-FC-3

Item Description: Rackmount Patch Panel for Splicing, 1U, Drawer Type 24-Fiber, Loaded with FC Multimode Adapters (with Metal Housing)

Patch Panel for Patching

Example:

Ordering Code: RMP-PCH-2U-D1-048-LC-1

Item Description: Rackmount Patch Panel for Patching, 2U, Drawer Type 48-Fiber, Loaded with LC Multimode Adapters (with Beige Housing)

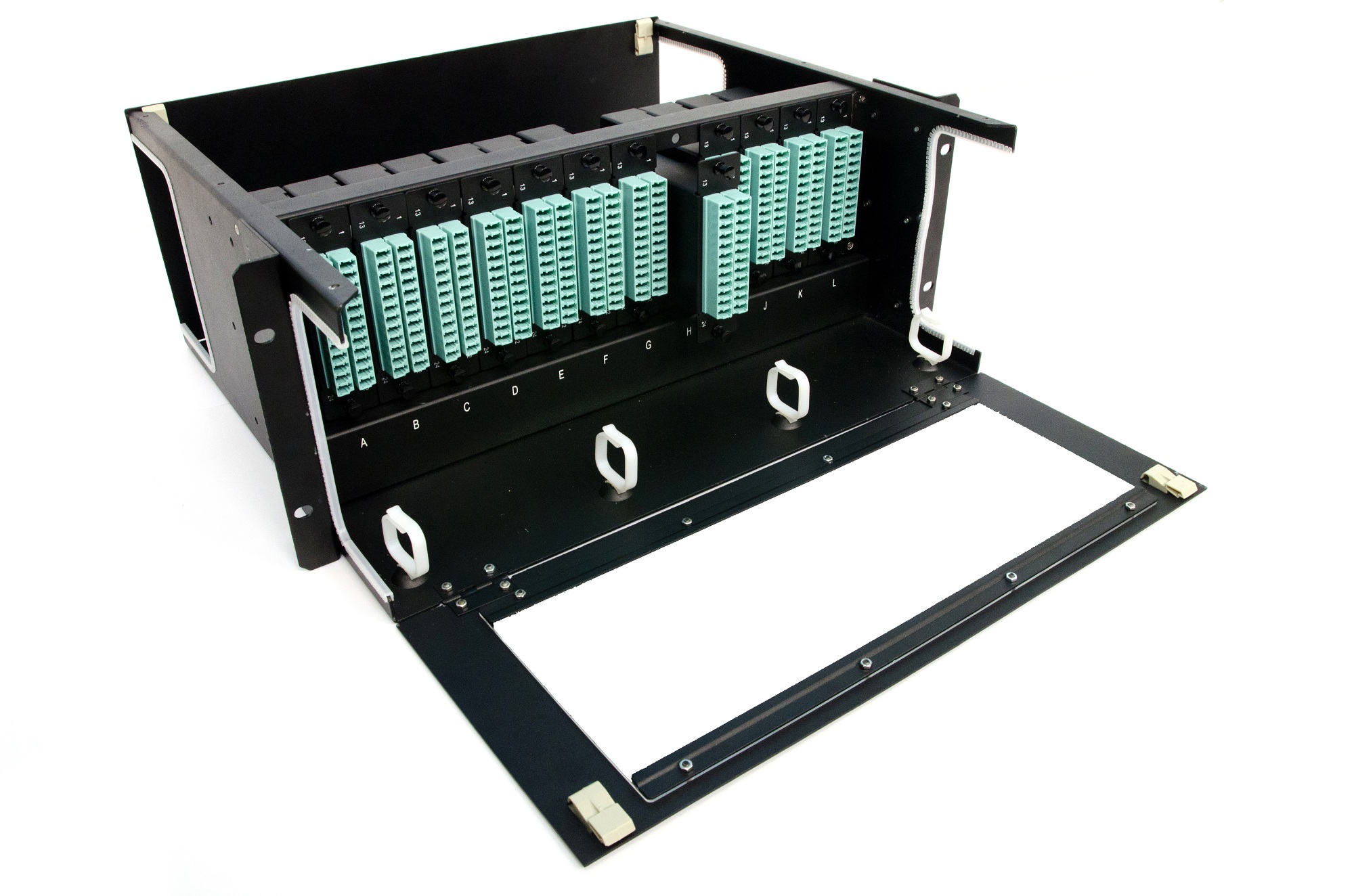

Patch Panel for MTP/MPO Fiber Cassette

Example:

Ordering Code: RMP-PPM-4U-D2-384-24-W-1

Item Description: Rackmount Patch Panel, 4U Drawer Type, 384-Fiber House with 16pcs of 24-Fiber MTP-LC Elite Cassettes (using 1x24 Elite MTP), Loaded with LC Singlemode Adapter (with Blue Housing)
